● Miniaturization design
The ultimate small body and heat dissipation structure design, smaller volume, lighter weight, better heat dissipation, more reliable products.
● Online type design, zero conversion
Digital-X series UPS adopts dual-conversion online design, intelligent MCU / DSP precision control; when mains is interrupted or restored, UPS realizes zero time switching between city mode and battery mode, effectively ensuring the reliability of load operation.
● High-quality sine-wave output
High quality sinusoidal waves (THD<3%, linear) can be output either in mains mode or battery mode to provide the best power supply for the load.
● Energy-efficient
The PFC power factor correction design and IGBT transformation technology are adopted, and the input power factor is 20.99, and the whole machine efficiency is 90%.
● Detection and self-protection function
Digital-X series UPS can simulate the power failure and enter the battery mode. This function can be executed at any time through "self-test button" on the panel, or with random monitoring software; perfect self-protection function, peak current and short circuit protection design, super load impact resistance.
●TVSS function
Namely, TRANSIENT VOLTAGE SURGE SUPPRESS burst wave voltage protection function. For conversion protection, including FAX, TELEPHONE, MODEM network, etc.
● DC startup function
In the mains power outage condition, if UPS is needed to start the computer or other load equipment, Digital-X series UPS can be directly turned up in battery mode, making the use of UPS more convenient and reliable.
● Automatic bypass / manual bypass / maintenance bypass (optional)
In addition to the automatic bypass function, Digital-X series UPS also has the function of manually setting the bypass on the panel keys; when necessary, the manual maintenance bypass is optional for online maintenance.
● Optional lightning protection function
Optional D class lightning protection device, with surge prevention, lightning protection design, effectively protect the equipment from lightning interference.
● EPO emergency shutdown function (optional)
Optional EPO switch to realize emergency shutdown of UPS.

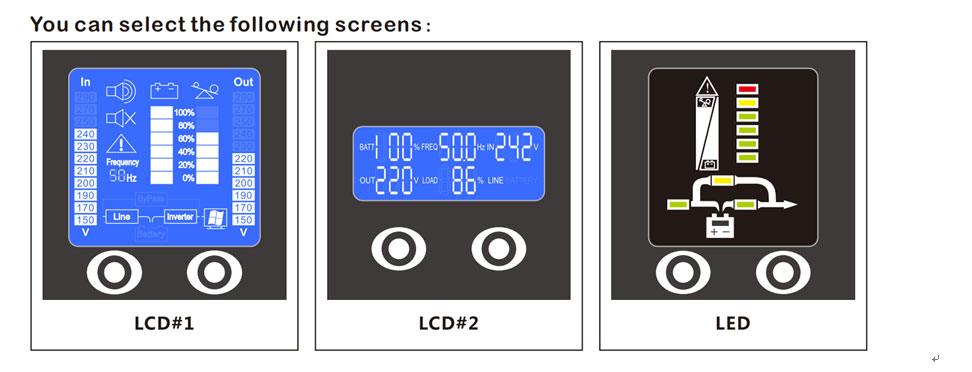

● Rich and humanized LCD / LED content display
UPS operating status (mains mode / battery mode / bypass mode), input and output, battery power, load size, and failure code, etc., at a glance.
● Long-term type power supply design
The Digital-X series UPS offers all long-acting machines for users to choose from. The appropriate battery pack can bring the discharge time of the UPS to about 8 hours to meet the requirements of different power grid environments. Digital-X series UPS long-acting machine extends the discharge time and the battery re-charging machine is also very strong, which can provide an initial charging current of about 3 ~ 4A (which can also be selected according to user needs).
● Can be used with a generator
The ultra-wide input voltage and frequency range enable Digital-X series UPS to be used together with mainstream brand generators to extend the use time, while effectively removing the impure power generated by the generator and providing safe and stable power supply for the load.
● Can be connected to the perceptual load
Digital-X series UPS for inductive load.
● Random monitoring software
Rs 232 communication interface (optional USB interface), random monitoring software, to realize the intelligent management of UPS by users.
● Equipped with Intelligent Slot intelligent slot for remote monitoring (optional)
The Digital-X series UPS is equipped with- -a Intelligent SIot smart slot, the users can choose the SNMP network card, to realize the centralized monitoring and remote monitoring and other functions.
